Jetrail® Serum Eye Drop System
System for
aliquotation of
serum eye drops
The Jetrail® system for aliquotation of eye drops from blood products optimises and shortens workflow in blood banks and transfusion centres.
Why serum eye drops?
The use of serum eye drops provides a high therapeutic effect, primarily for patients with severe corneal defects or chronic dry eye.
Jetrail® is the latest generation closed system for producing serum eye drops, and offers many benefits. The central element, the rail, allows for rapid filling of a variety of vials. The Jetrail® Sealer then heat-seals 10 vials in one step.
Filling of Serum Eye drops
Jetrail® Sets
The next level: The traditional production of serum eye drops is extremely time-consuming and staff-intensive.
The core element – the patented Jetrail® rails – takes aliquotation to the next level. For the first time, it is possible to fill the serum in just a few seconds.
The next level: The traditional production of serum eye drops is extremely time-consuming and staff-intensive. The core element – the patented Jetrail® rails – takes aliquotation to the next level. For the first time, it is possible to fill the serum in just a few seconds.
Flexible variability in
filling quantities
for serum eye drops
Each Jetrail® Set consists of rails, each with 10 vials and a syringe. The Jetrail® Extensions are made of additional rails and can be easily connected and combined to any Jetrail® Set. Thus, the existing blood product is aliquoted completely with the desired filling quantity for each vial, and the eye drops are ideally adapted to the patient requirements.

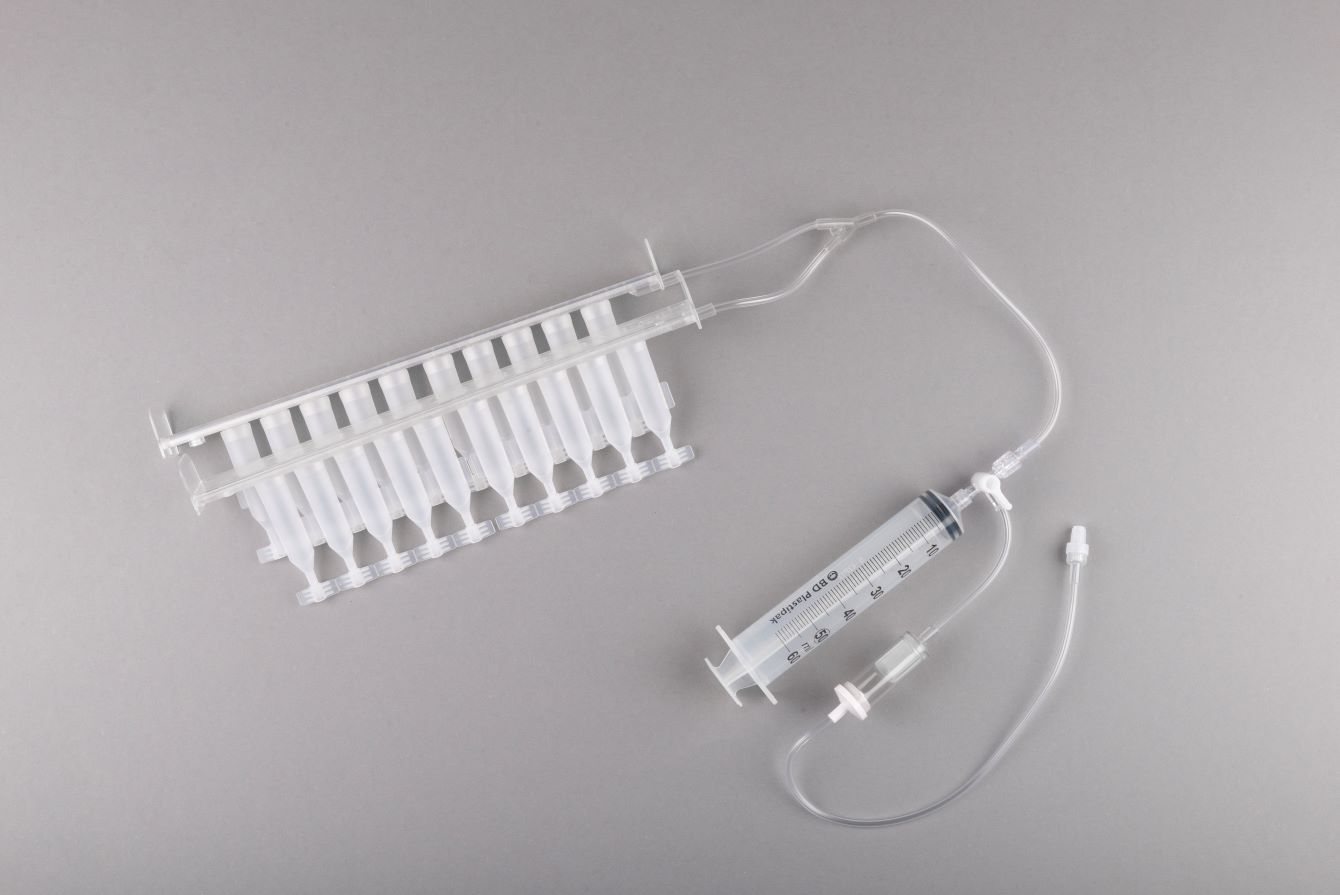

Jetrail® Set 20
20 vials
Ideal for the production of small quantities. The set consists of two rails, each with 10 vials, a syringe and a filter.

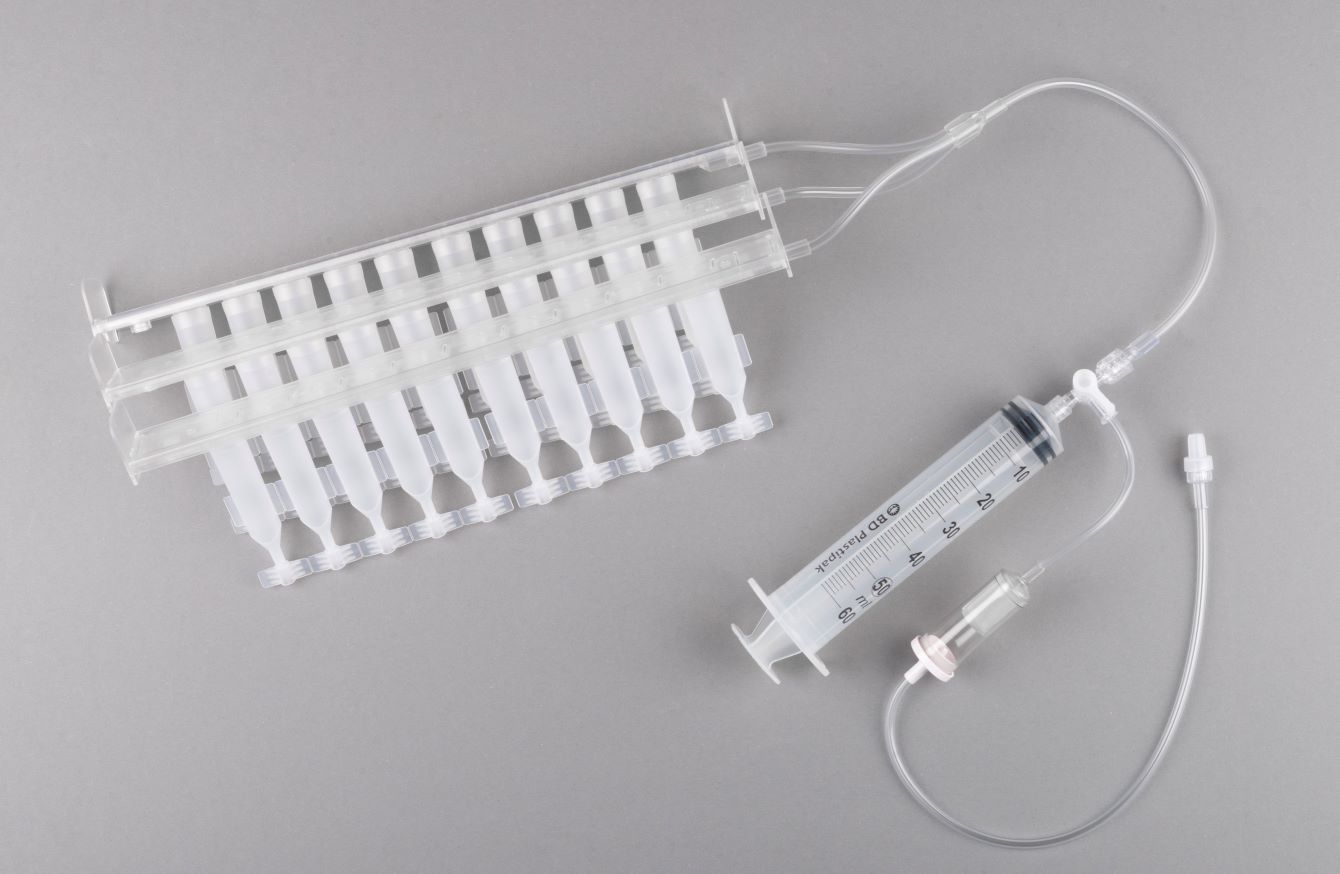

Jetrail® Set 30
30 vials
This set is ideal for producing a monthly supply for patients. There are 3 rails, each containing 10 vials including syringe and filter.

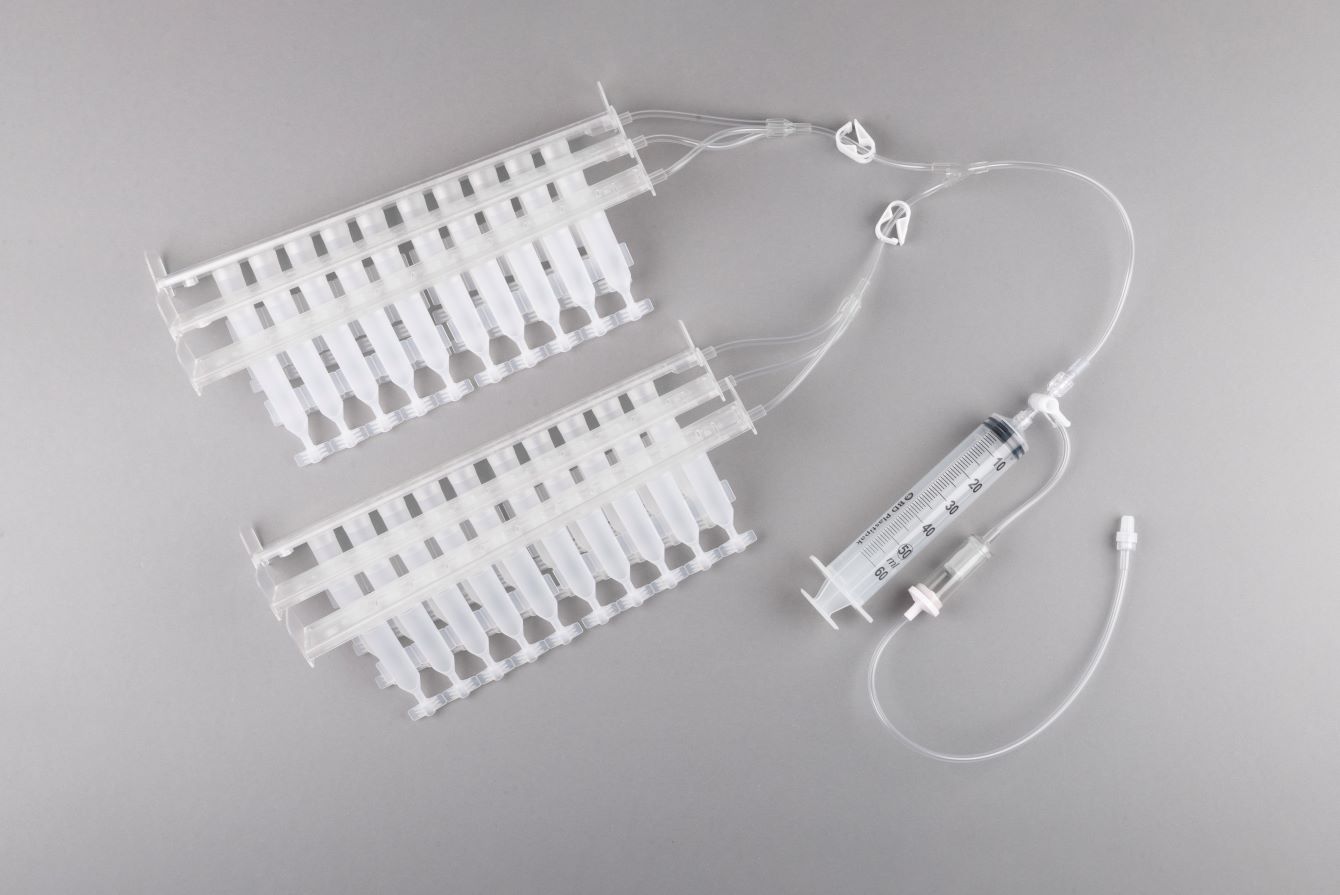

Jetrail® Set 60
60 vials
Ideal for the rapid production of eye drops in large volumes. The set includes 6 rails with 10 vials each, including syringe and filter.
Benefits
| Closed System | No clean room required | |
| Flexible configuration with variable number of vials | Number of vials can be adjusted to the amount of serum. Optimal serum usability | |
| Functional drip outlet | Precise and easy dosage control during usage | |
| Filling process of up to 60 vials in a few seconds | Fast and easy work for laboratory personnel | |
| Simultaneous heat-sealing of 10 vials in one process | Effortless and quick completion of individual containers |
| Closed system | No clean room required | |
| Flexible configuration with variable number of vials | Number of vials can be adjusted to the amount of serum. Optimal serum usability | |
| Functional drip outlet | Precise and easy dosage control during usage | |
| Filling process of up to 60 vials in a few seconds | Fast and easy work for laboratory personnel | |
| Simultaneous heat-sealing of 10 vials in one process | Effortless and quick completion of individual containers |
How it Works
The Jetrail® Set is removed from the sterile packaging, and the rails are placed in the Jetrail® rack. The blood product is now sterilely connected to the set.
The desired amount of serum is drawn up with the syringe and then simultaneously aliquoted within seconds into the vials. The containers can be filled with up to 1.5 ml. For example, for a Jetrail® Set 30, 30 ml will supply 1 ml for each vial.
STEP 1 – FILLING
STEP 2 – SEALING
With the Jetrail® system, filling and sealing of the vials is done in two simple steps.

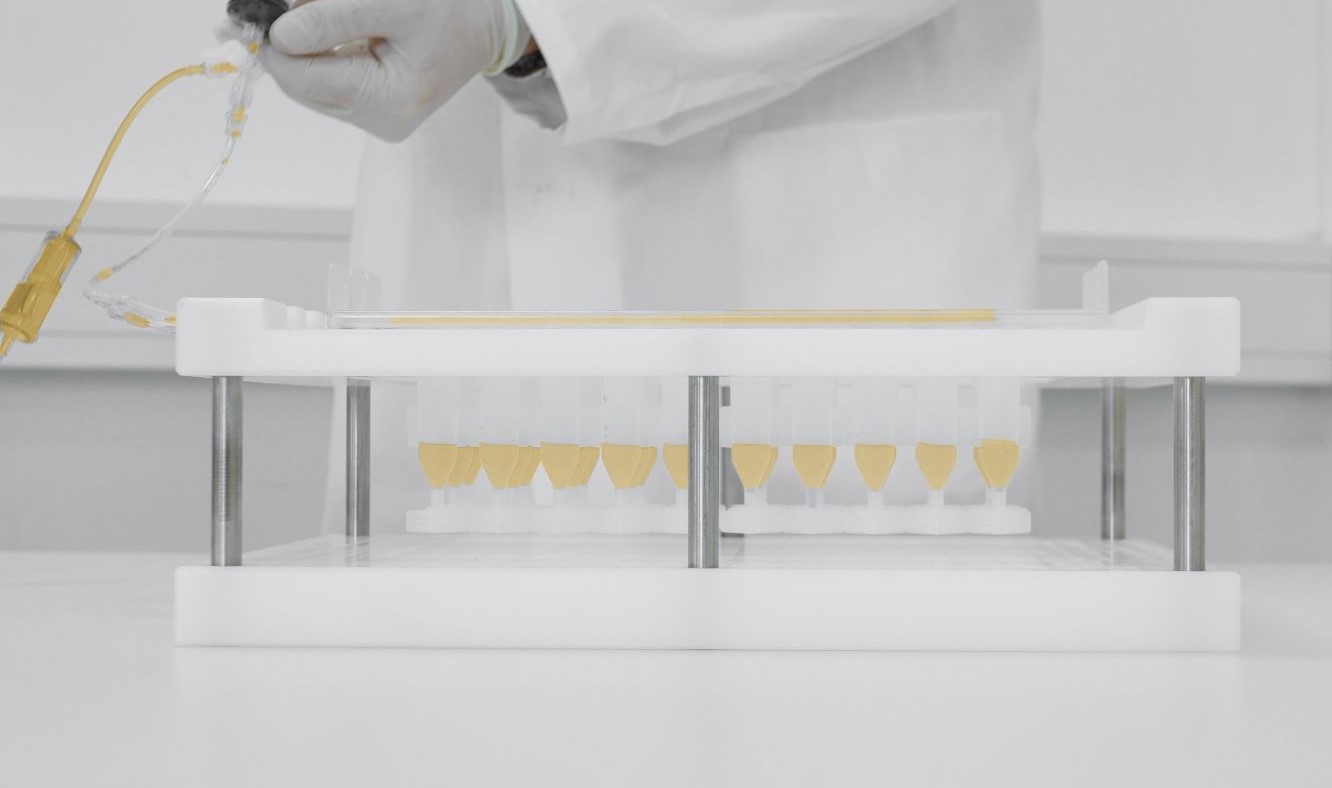

STEP 1: The blood product is sterilely connected with the Jetrail® Set and the liquid is filled into 10 vials per rail simultaneously with the syringe in one go.

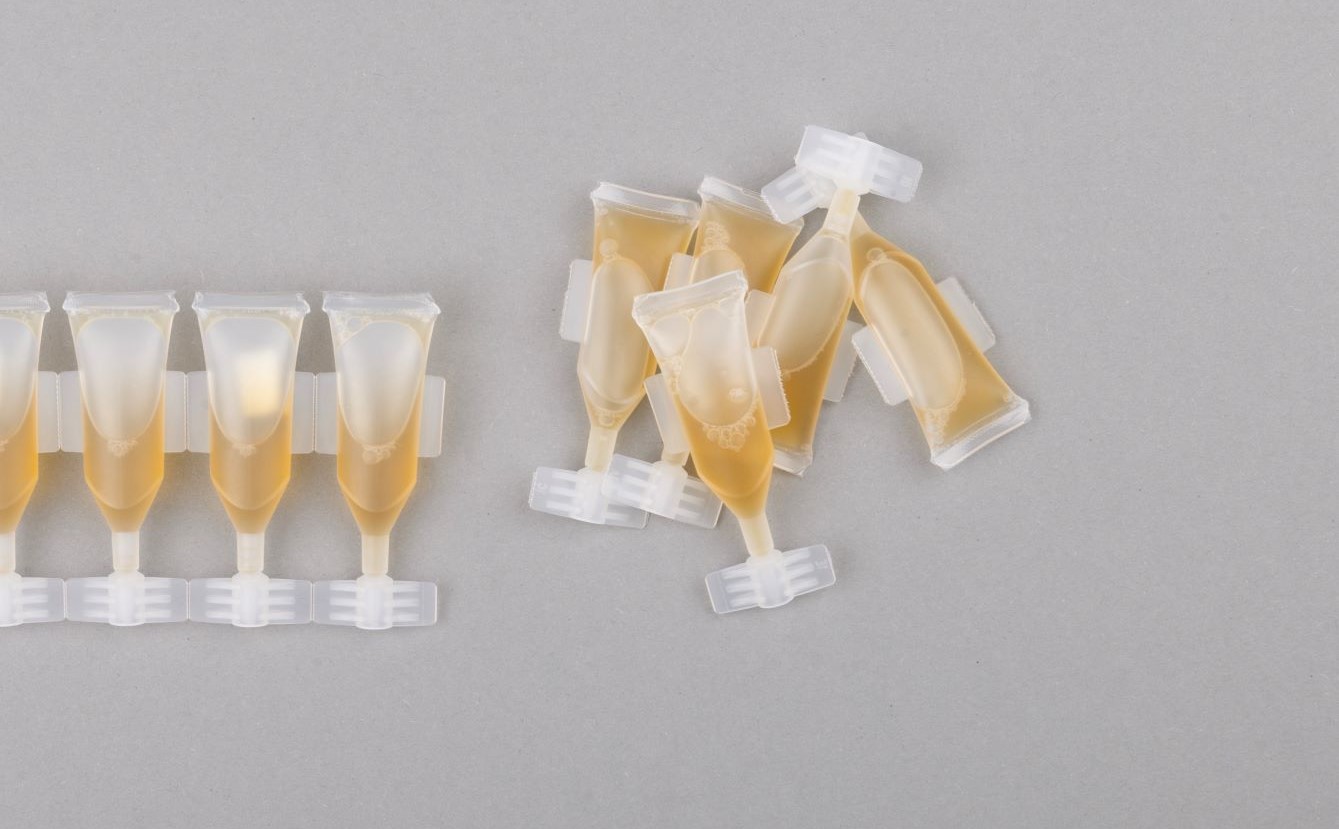

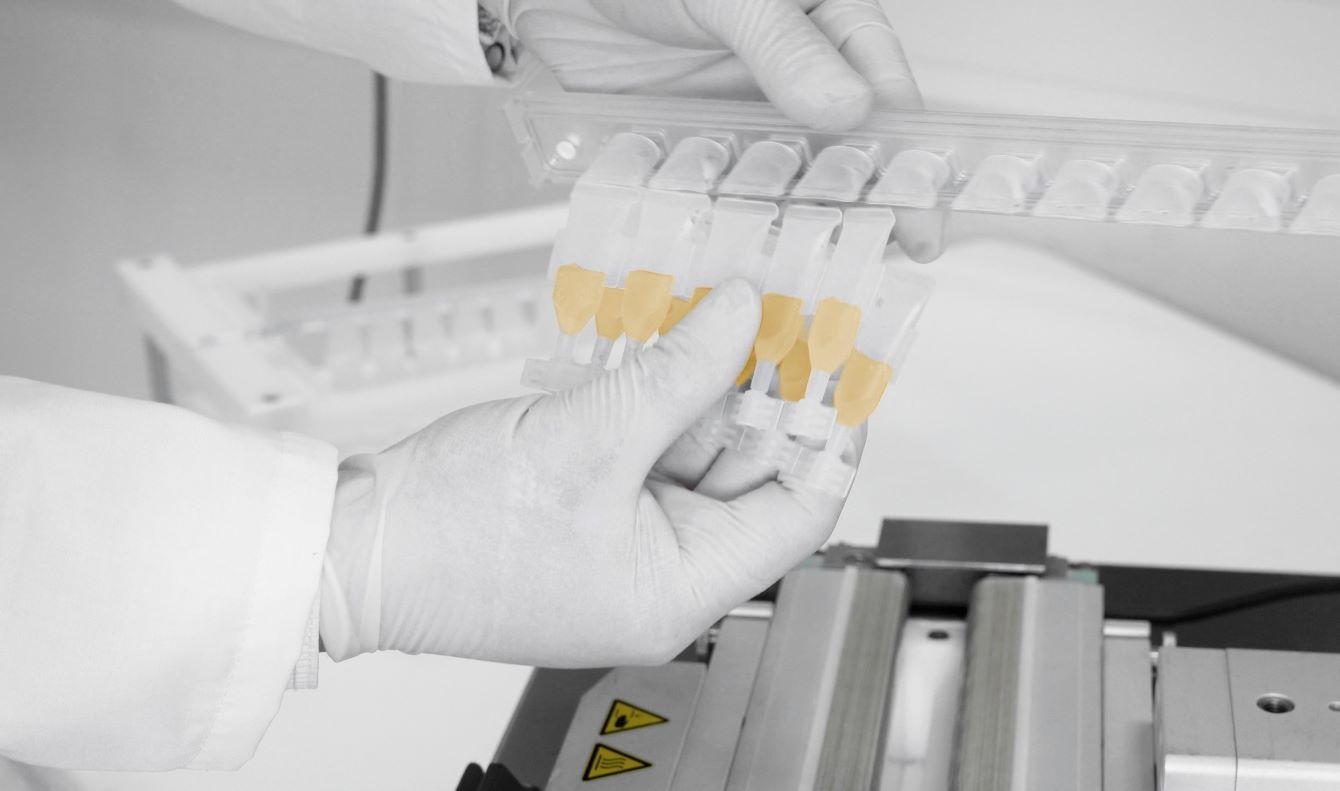

STEP 2: Each rail is sterilely disconnected and placed into the Jetrail® Sealer. Automatic sealing takes about 20-30 seconds per rail. Afterwards, the vials can be easily disconnected from the rail. The serum eye drop vials can now be packed.
Jetrail® Set
Product Features
| Packaging units Sets |
Set 20 | Set 30 | Set 60 | | |
| Packaging units Extensions |
Ext 10 | Ext 20 | Ext 30 | Ext 60 | |
| Medical device | Class 2a | |
| Quality standard | ISO 13485 | |
| Safe materials | DEHP free latex free |
|
| Packaging | Sterile bag |
| Packaging units Sets | Set 20 |Set 30 | Set 60 | | |
| Packaging units Extensions |
Ext 10 | Ext 20 | Ext 30 | Ext 60 | |
| Medical device | Class 2a | |
| Quality standard | ISO 13485 | |
| Safe materials | DEHP free latex free |
|
| Packaging | Sterile bag |
HIGHER QUANTITY
PRECISE ALIQUOTATION

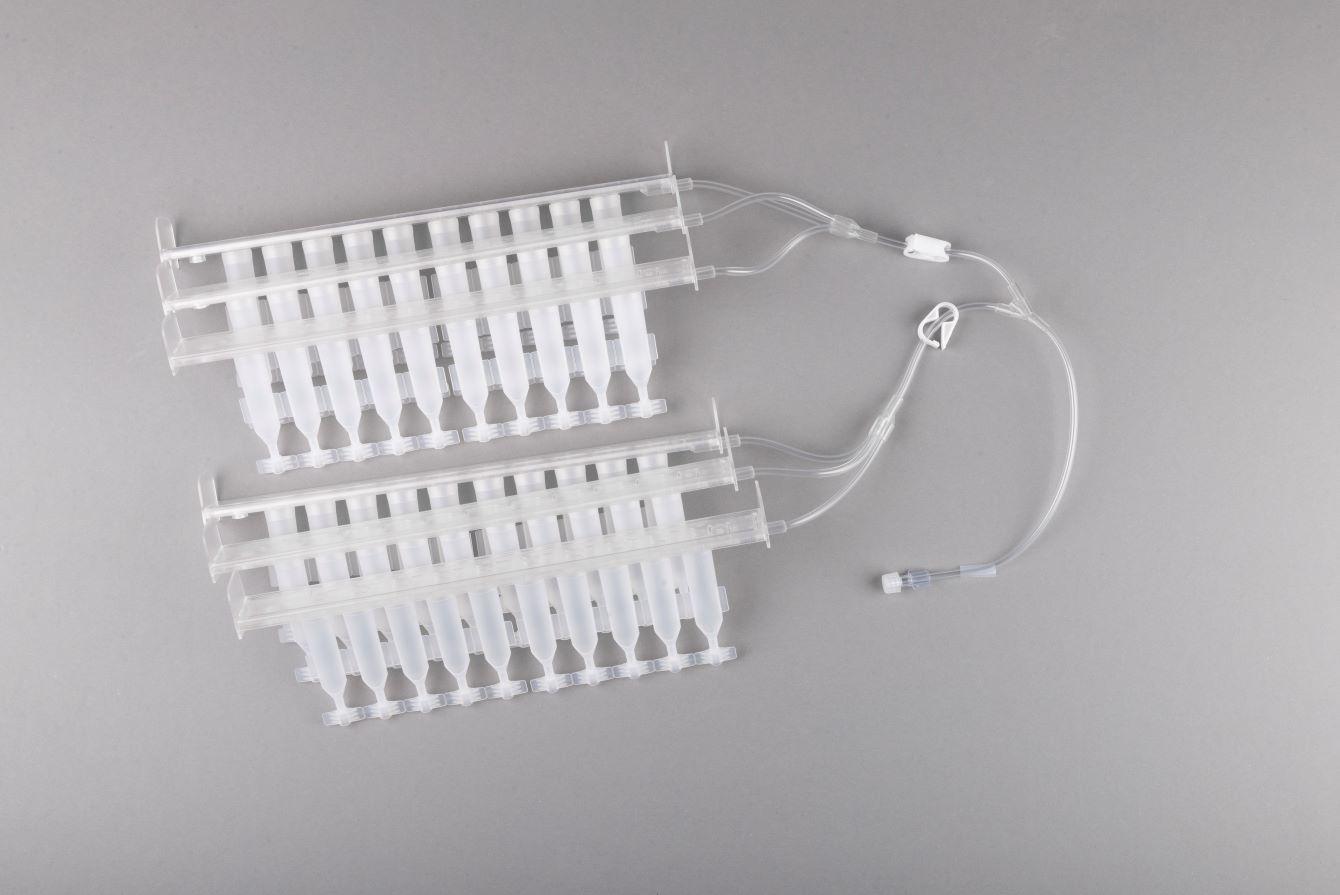

Jetrail® Extensions
Patented Jetrail® Extensions allow for economical filling of larger amounts of serum.
How does the extension work?
After separation of the first filled rails, the Jetrail® Extensions are sterilely connected, and the serum remaining in the bag can be filled further.
Patented Jetrail® Extensions allow for economical filling of larger amounts of serum.
How does the extension work?
After separation of the first filled rails, the Jetrail® Extensions are sterilely connected, and the serum remaining in the bag can be filled further.

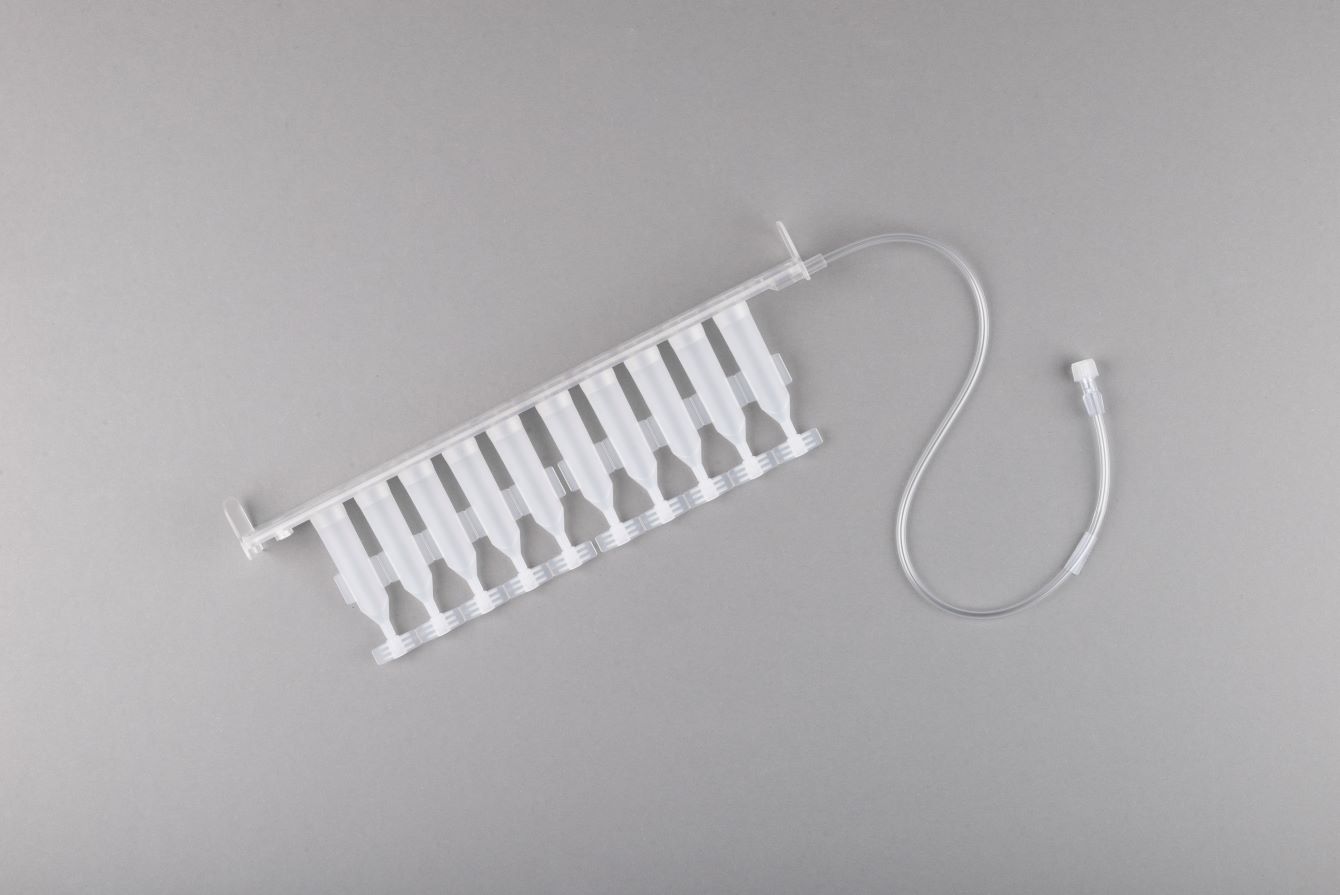

Jetrail® Ext 10
Extension of all
Jetrail® Sets by 10 vials

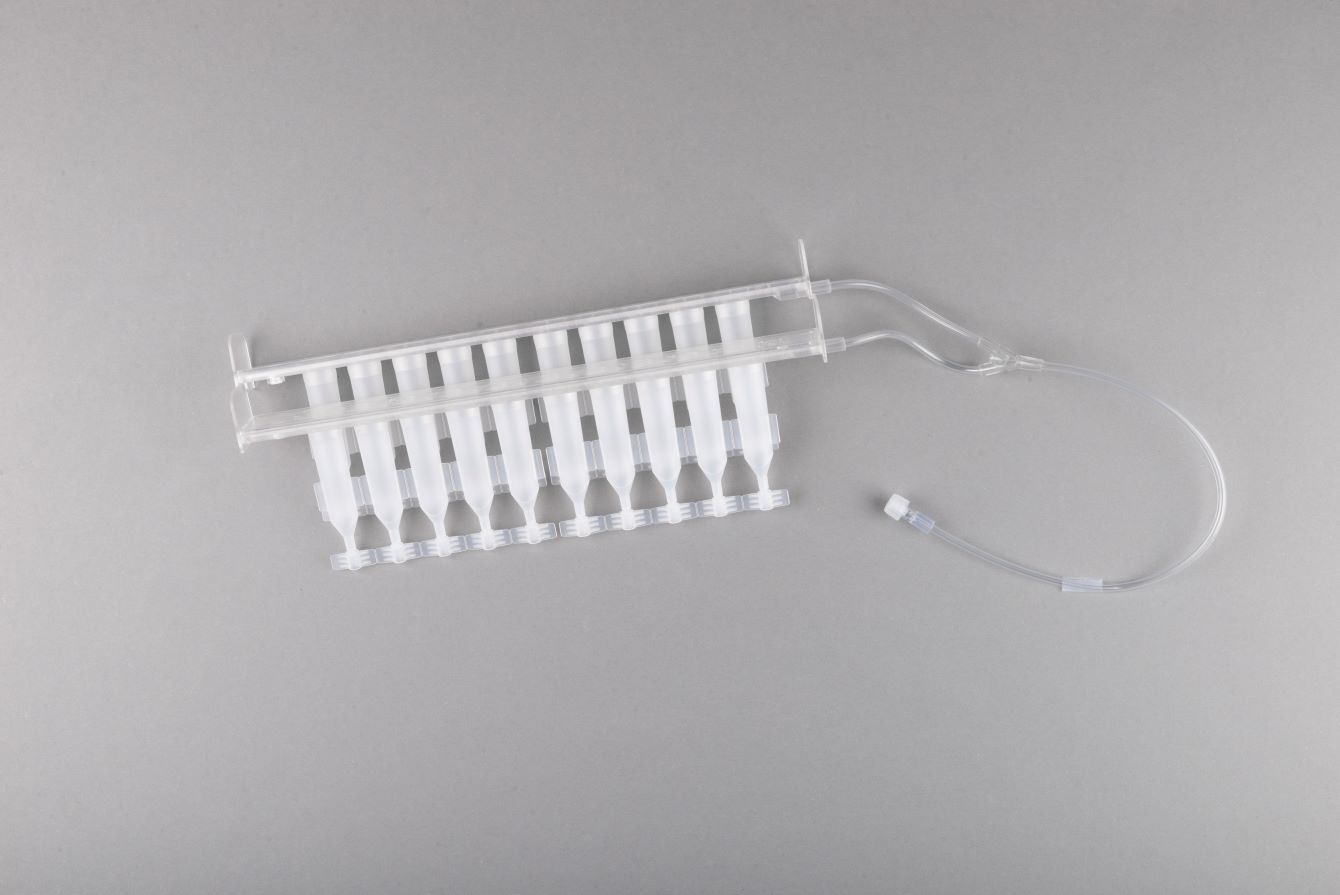

Jetrail® Ext 20
Extension of all
Jetrail® Sets by 20 vials
Jetrail® Ext 30
Extension of all
Jetrail® Sets by 30 vials
Jetrail® Ext 60
Extension of all
Jetrail® Sets by 60 vials
AUTOMATIC SEALING OF
THE VIALS

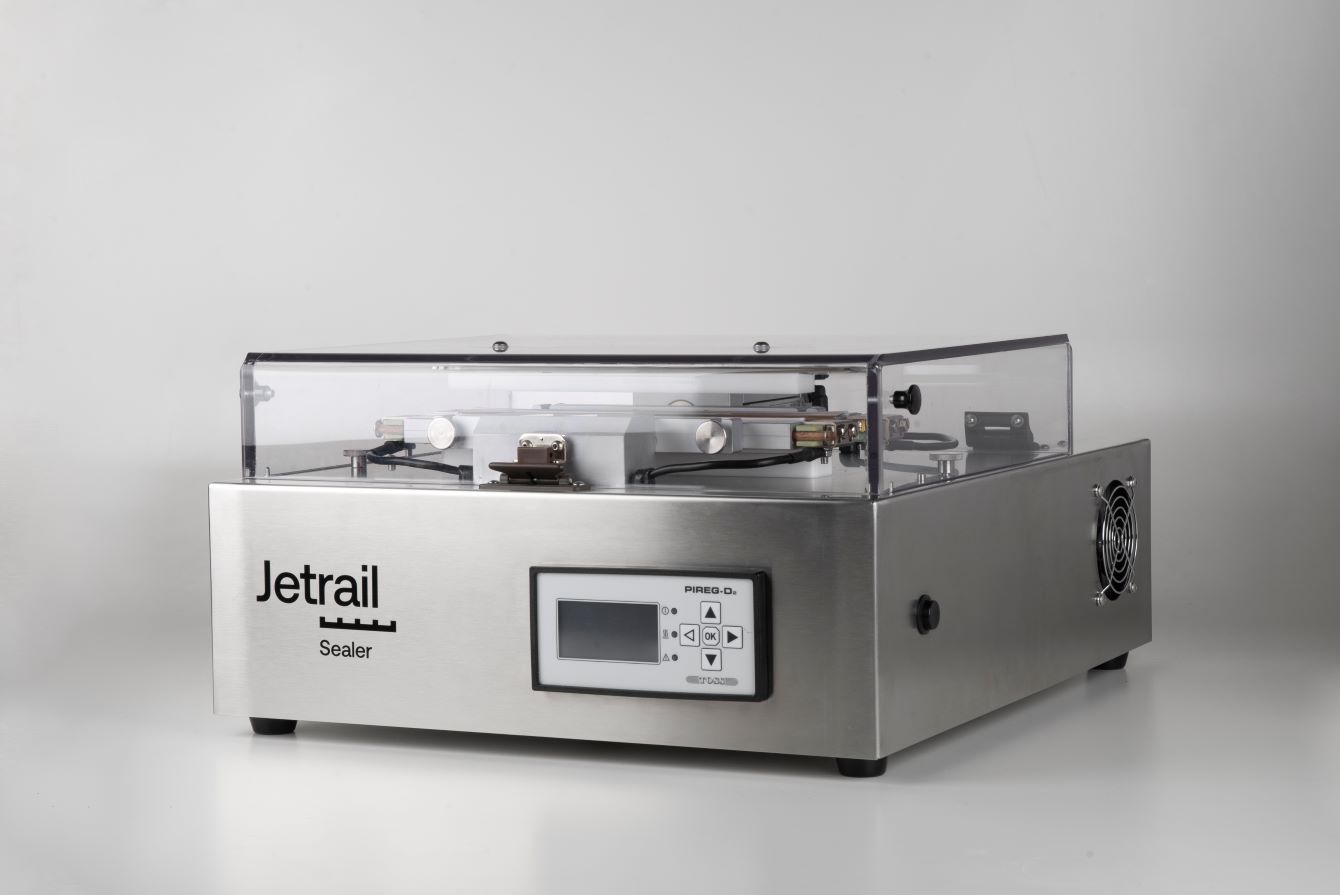

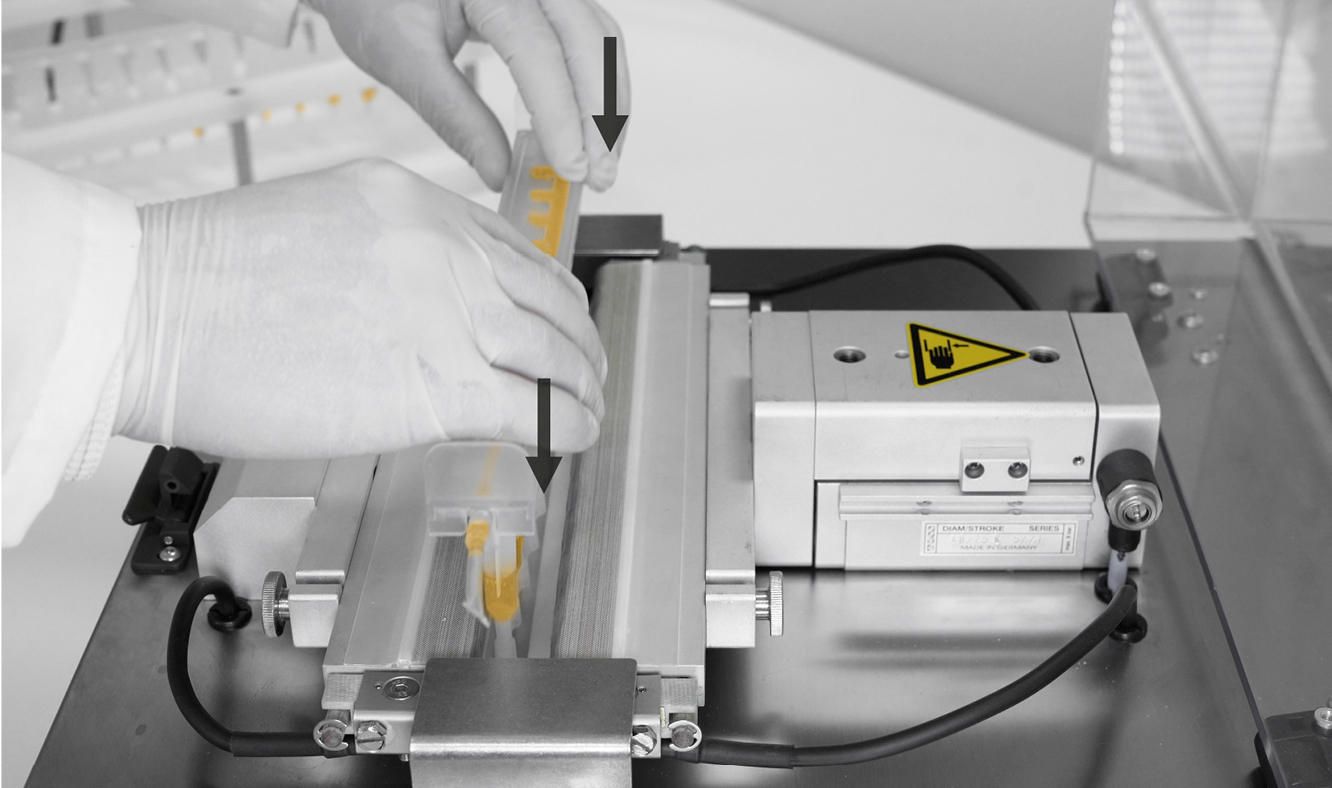

Jetrail® Sealer
The next level: the production of eye drops in your blood bank does not have to be a long and complicated process. Jetrail® is a system that offers you a new standard: each rail, with 10 containers, is automatically sealed in just a few seconds. This means that manual sealing of individual containers is no longer required.
That’s how the Jetrail® Sealer works:
The next level: the production of eye drops in your blood bank does not have to be a long and complicated process. Jetrail® is a system that offers you a new standard: each rail, with 10 containers, is automatically sealed in just a few seconds. This means that manual sealing of individual containers is no longer required.
That’s how the Jetrail® Sealer works:
Patients will receive their individual requirement of serum eye drops ininsulated freezer bags.
The Jetrail® insulating bags with integrated cooling gel are ideal for transporting serum eye drops, as well as for storing and freezing up to 60 vials. The bags are space-saving, resealable and reusable. They ensure:
- Simple, space-saving packaging in the blood bank
- Safe cooling in the blood bank at up to -80 degrees Celsius.
- Optimal cold chain assurance en route to the patient
- Space-saving solution for patients
- Reusability for the patient
FROM BLOOD PRODUCT
TO PATIENT

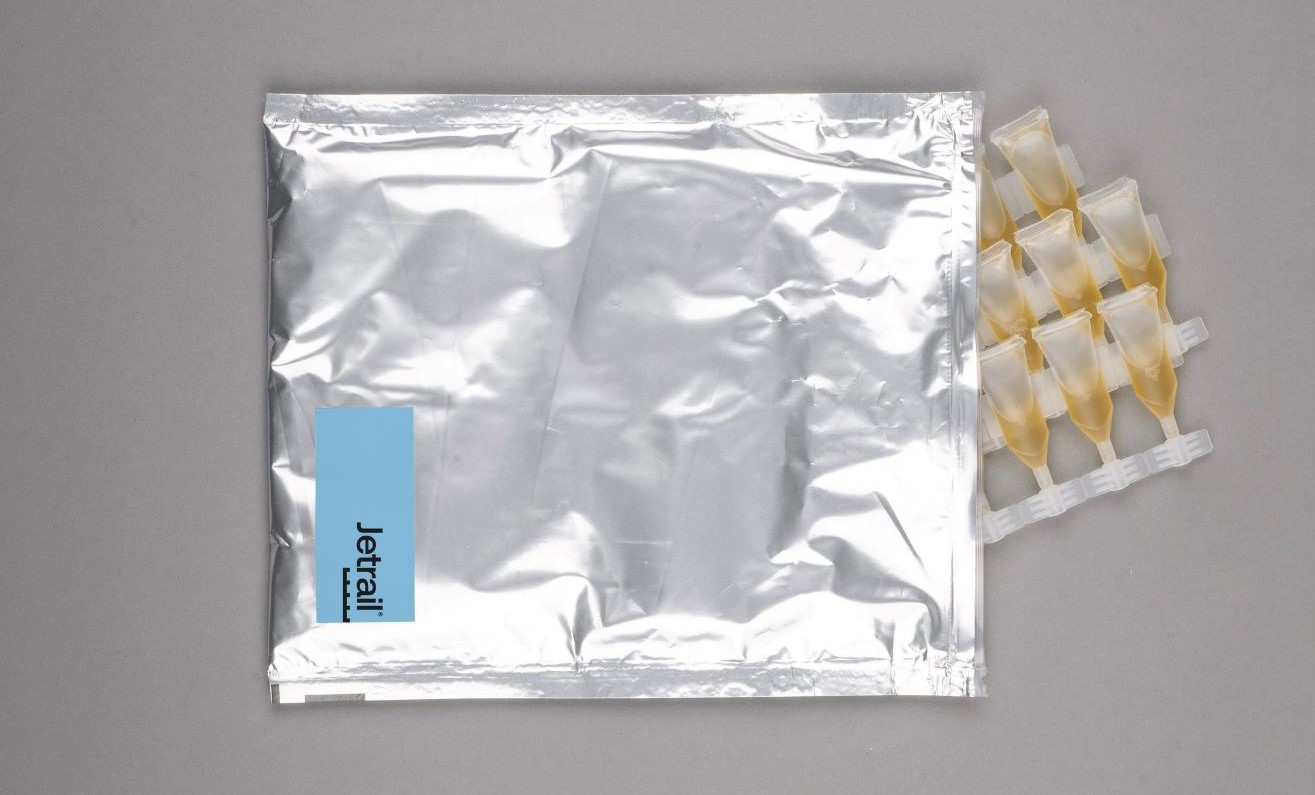

Jetrail® Bag
FROM BLOOD PRODUCT
TO PATIENT
Jetrail® Bag
Patients will receive their individual requirement of serum eye drops ininsulated freezer bags.
The Jetrail® insulating bags with integrated cooling gel are ideal for transporting serum eye drops, as well as for storing and freezing up to 60 vials. The bags are space-saving, resealable and reusable. They ensure:
- Simple, space-saving packaging in the blood bank
- Safe cooling in the blood bank at up to -80 degrees Celsius.
- Optimal cold chain assurance en route to the patient
- Space-saving solution for patients
- Reusability for the patient
ALIQUOTING
MADE EASY

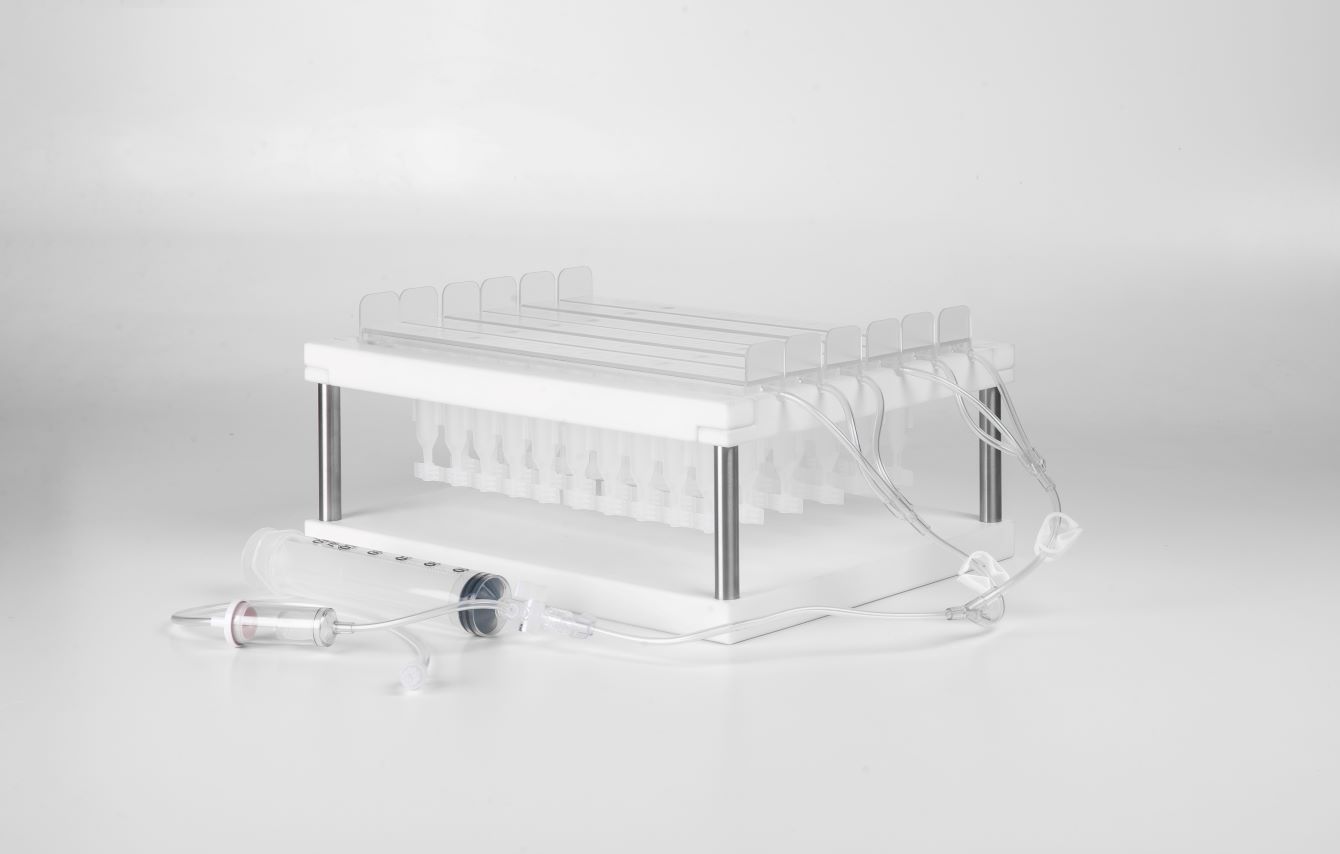

Jetrail® Rack
Small aid –great support: The Jetrail Rack, like the Jetrail® Sealer, is a permanent aid in the aliquotation of serum eye drops. The rails from the Jetrail® Sets are placed next to each other in the rack. This ensures that the vials are filled quickly and evenly: the vials are now in a vertical position and are filled evenly.
Small aid –great support: The Jetrail® Rack, like the Jetrail® Sealer, is a permanent aid in the aliquotation of serum eye drops. The rails from the Jetrail® Sets are placed next to each other in the rack. This ensures that the vials are filled quickly and evenly: the vials are now in a vertical position and are filled evenly.
Questions?
Simply contact us.
Interesting posts
On point medicals has won the 2024 Innovations- and Research Award of the Federal State of Carinthia.
Dry eye disease (DED) is a prevalent and often underestimated ocular condition that affects millions of people worldwide. Find out more about causes, symptoms and treatment options.
Serum Eye Drops (SED) are similar to normal tears and show a high efficacy in therapy with patients suffering from severe ocular surface problems, such as Dry Eye Disease. Learn more about this widely unknown blood-derived therapy.

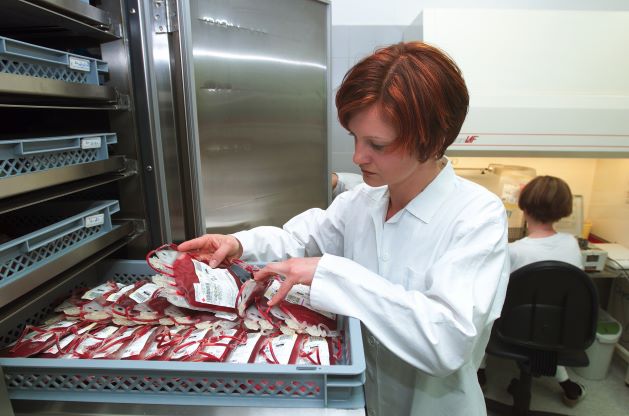

Cold chain management can ensure that unused blood products are returned to the blood bank safely. In times of blood shortages it is more than important that surplus blood products can be reused. More on why temperature monitoring is essential.
Blood is irradiated before transfusion in order to avoid the formation of the rare but mostly fatal TA-GvHD. Here is why it is much better to prevent this disease with blood irradiation than to diagnose it.
The transfusion-associated graft-versus-host reaction is a complication of blood transfusion in immunodeficient patients. Read here why it can arise and what serious reactions it causes.

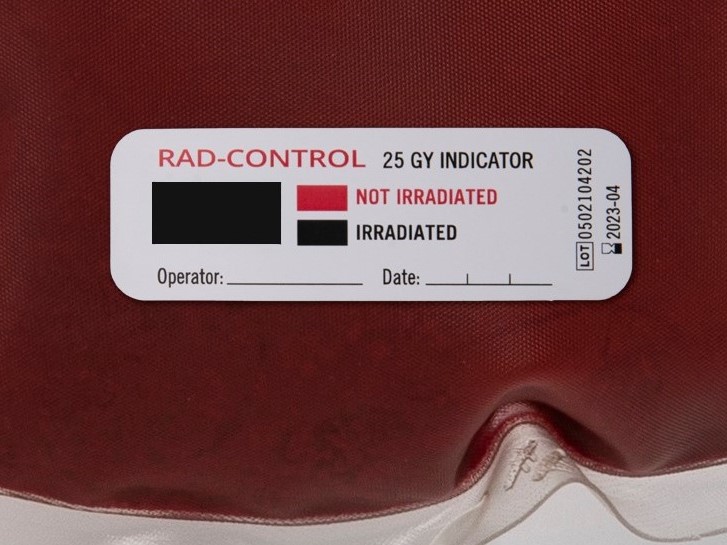

The digital traceability of blood transfusions is of crucial importance - also if blood irradiation is involved. Find the latest developments in digital verification of blood irradiation in this article.
